1.Application

CJX2-Z series DC operated AC contactor is suitable for use in the circuits up to rated voltage660V AC 50Hz or 60Hz, and in rated current 9-95A in AC-3/380V load circuits. For remotecontrolling circuit making, breaking and frequent starting AC motors. It can also combine withthe auxiliary contact group, air delayer, thermal relay devices etc.

2.Specification

Type CJX2-09Z CJX2-12Z CJX2-18Z CJX2-25Z CJX2-32Z
Rated working current(A)
380V AC3 9 12 18 25 32
AC4 3.5 5 7.7 8.5 12
660V AC3 6.6 8.9 12 18 21
AC4 1.5 2 3.8 4.4 7.5
Rated heat current(A)
25 25 32 40 50
Controllable power(KW)
220/240V 2.2 3 4 5.5 7.5
380/400V 4 5.5 7.5 11 15
415V 4 5.5 9 11 15
500V 5.5 7.5 10 15 18.5
600/690V 5.5 7.5 10 15 18.5
Weight(Kg)
DC contactor 0.64 0.34 0.65 0.65 0.95
Measure(Mm3)
DC contactor 76x115x47 76x115x47 76x120x47 88x130x59 86x135x59
Pole
3, 4 3, 4 3 3, 4 3
Rated working voltage(V)
380, 660 380, 660 380, 660 380, 660 380, 660
Rated insulation voltage(V)
660 660 660 660 660
Mechanical life x104
1000 1000 1000 1000 800
Electrical life
AC x104 100 100 100 100 80
AC4 x104 20 20 20 20 20
Operating frequency
Electrical life AC3 x104 1200 1200 1200 1200 600
AC4 x104 300 300 300 300 300
Mechanical life x104 3600 3600 3600 3600 3600
Rated controlled voltage(V)
24-660 24-660 24-660 24-660 24-660
Working voltage
Close DC% 0.85-1.1Us 0.85-1.1Us 0.85-1.1Us 0.85-1.1Us 0.85-1.1Us
Open DC% 0.10-0.75Us 0.10-0.75Us 0.10-0.75Us 0.10-0.75Us 0.10-0.75Us

Type CJX2-40Z CJX2-50Z CJX2-65Z CJX2-80Z CJX2-95Z
Rated working current(A)
 380V AC3 40 50 65 80 95
AC4 18.5 24 28 37 44
660V AC3 34 39 42 49 55
AC4 9 12 14 17.3 21.3
Rated heat current(A)
60 80 80 125 125
Controllable power(KW)
 220/240V 11 15 18.5 22 25
380/400V 18.5 22 30 37 45
415V 22 30 37 45 45
500V 22 30 37 55 55
600/690V 30 33 37 45 55
Weight(Kg)
DC contactor 2.185 2.185 2.185 2.525 2.525
Measure(Mm3)
DC contactor 128x175x81 128x175x87 128x175x87 128x183x87 128x183x8
Pole
3, 4 3, 4 3, 4 3, 4 3, 4
Rated working voltage(V)
380, 660 380, 660 380, 660 380, 660 380, 660
Rated insulation voltage(V)
660 660 660 660 660
Mechanical life x104
 800 800 800 600 600
Electrical life
AC x104 80 80 80 60 60
AC4 x104 15 15 15 10 10
Operating frequency
Electrical life AC3 x104 600 600 600 600 600
AC4 x104 300 300 300 300 300
Mechanical life x104 3600 3600 3600 3600 3600
Rated controlled voltage(V)
24-660 24-660 24-660 24-660 24-660
Working voltage
 Close DC % 0.85-1.1Us 0.85-1.1Us 0.85-1.1Us 0.85-1.1Us 0.85-1.1Us
Open DC % 0.10-0.75Us 0.10-0.75Us 0.10-0.75Us 0.10-0.75Us 0.10-0.75Us

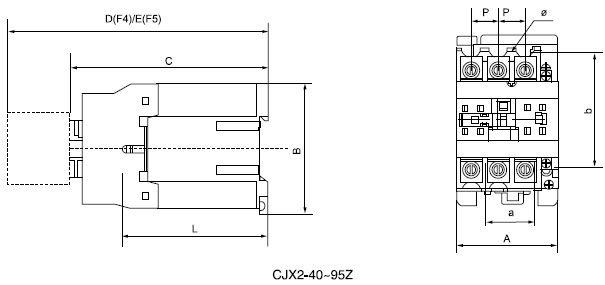

3. Outline and Mounting Dimension


CJX2-09Z-12Z
Amax
Bmax
Cmax
Dmax
Emax
a
b
φ
L
P
S
CJX2-18Z
47
76
82(116)
120.5(154.5)
140.5(174.5)
34/35
50/60
4.5
60(95)
105
8.6
CJX2-25Z
47
76
87(122)
125.5(160.5)
145.5(180.5)
34/35
50/60
4.5
61(96)
11.3
10.4
CJX2-32Z
57
86
95(131)
133.5(169.5)
153.5(189.5)
40
48
4.5
70(107)
13.2
11.7
CJX2-4011Z-6511Z
57
86
100(138)
138.5(176.5)
158.5(196.5)
40
48
4.5
71.6(120)
14.5
13
CJX2-4004/4008Z -6504/6508Z
77
129
116(173)
154.5(211.5)
174.5(231.5)
40
100/110
6.5
78(135)
20
8.6
CJX2-8011Z-9511Z
84
129
116(173)
154.5(211.5)
174.5(231.5)
40
100/110
6.5
78(135)
20
8.6
CJX2-09Z-12Z
87
129
127(188)
165.5(226.5)
185.5(246.5)
40
100/110
6.5
83(140)
23.5
12
CJX2-8004/8008Z -9504/9508Z
96
129
127(183)
160.5(221.5)
180.5(241.5)
40
100/110
6.5
83(140)
23.5
12
